What are perforated plates and what are their main uses?
Perforated plates are metal sheets with punched holes of various shapes and sizes. They serve milling, filtration, separation, and architectural functions. Kentech supplies these plates nationwide for industries like food processing, mining, and construction.
Perforated plates come in stainless steel 304, 316, and carbon steel. Apertures start from 0.3mm diameter. You can order them flat or rolled for hammer mills, centrifugals, and diffuser plates.
← Back to Products
Overview
What materials and sizes are stocked for perforated plates?
Types & Variants
Standard sheet sizes are 2000x1000mm, 2500x1225mm, and 1500x3000mm. Larger sheets up to 2000x6000mm are available. Thickness options start at 0.3mm and go up to 20mm. Custom perforation patterns and drilled plates are produced for specialised filtration needs where hole diameter must be smaller than plate thickness.
Materials
Stock materials include stainless steel 304, stainless steel 316, mild steel, and aluminium. Orderable materials include brass, copper, hastelloy, incoloy, inconel, monel, nickel, and titanium. Sheet sizes range from 2000x1000mm to 2000x6000mm in thicknesses from 0.3mm to 20mm.
About This Product
What are perforated plates and what are their main uses?
Perforated plates are metal sheets with punched holes of various shapes and sizes. They serve milling, filtration, separation, and architectural functions. Kentech supplies these plates nationwide for industries like food processing, mining, and construction.
Perforated plates come in stainless steel 304, 316, and carbon steel. Apertures start from 0.3mm diameter. You can order them flat or rolled for hammer mills, centrifugals, and diffuser plates.

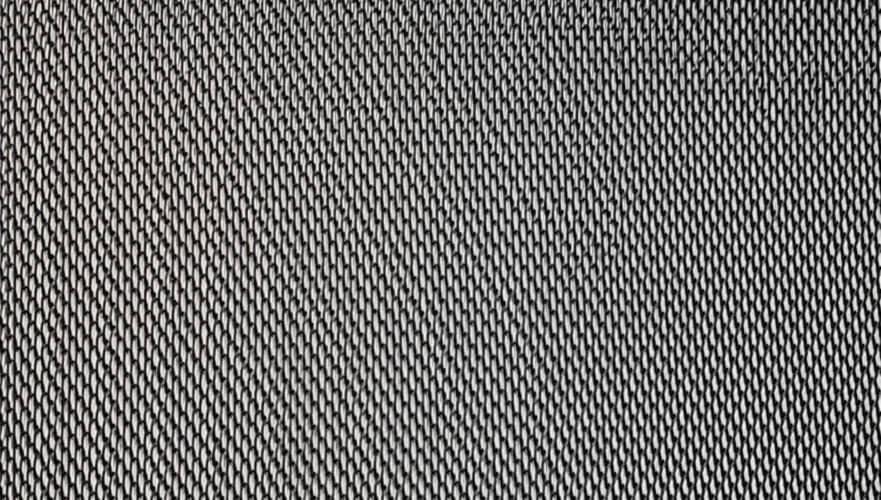

0.1mm Aperture

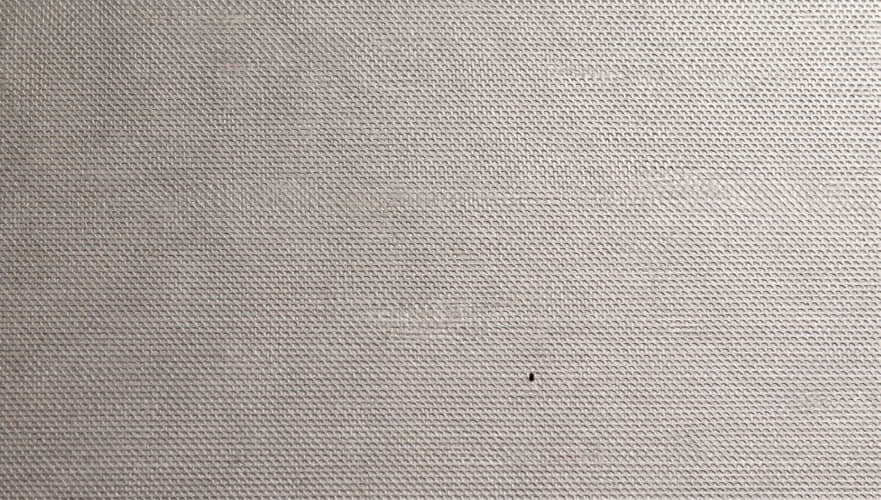

0.4mm Aperture

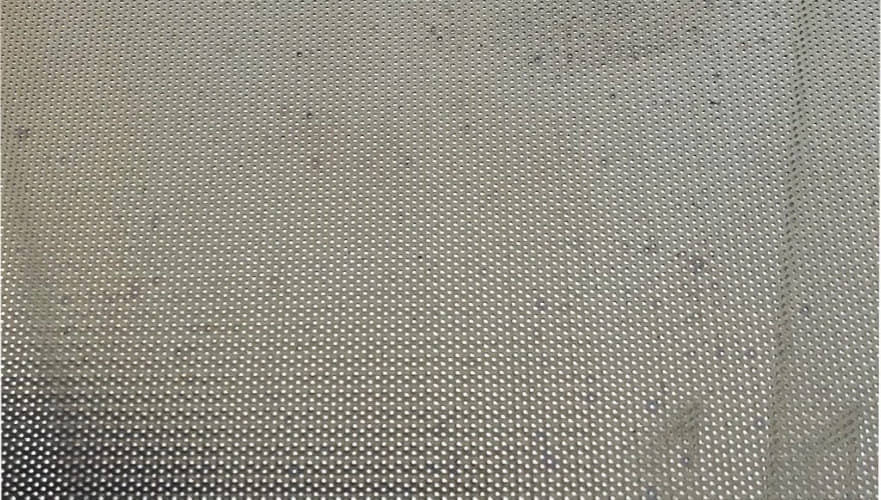

0.5mm Aperture

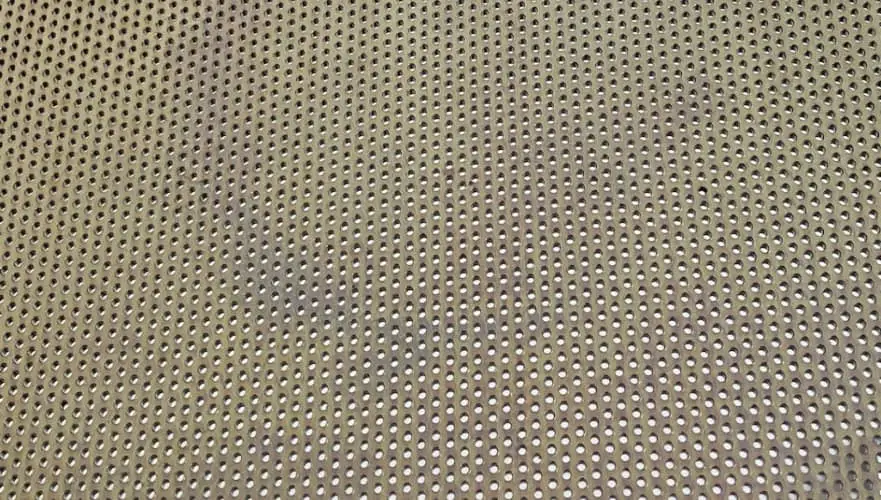

1mm Aperture

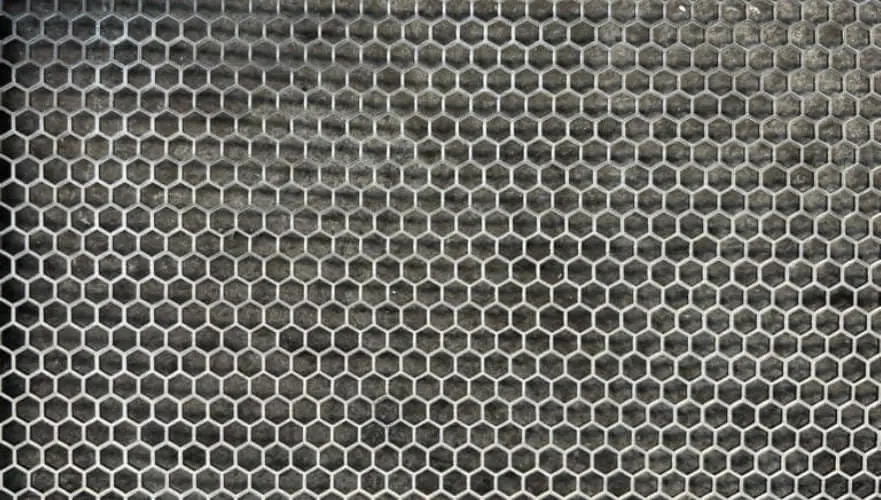

Hexagonal Hole 6mm x 6.7mm Pitch

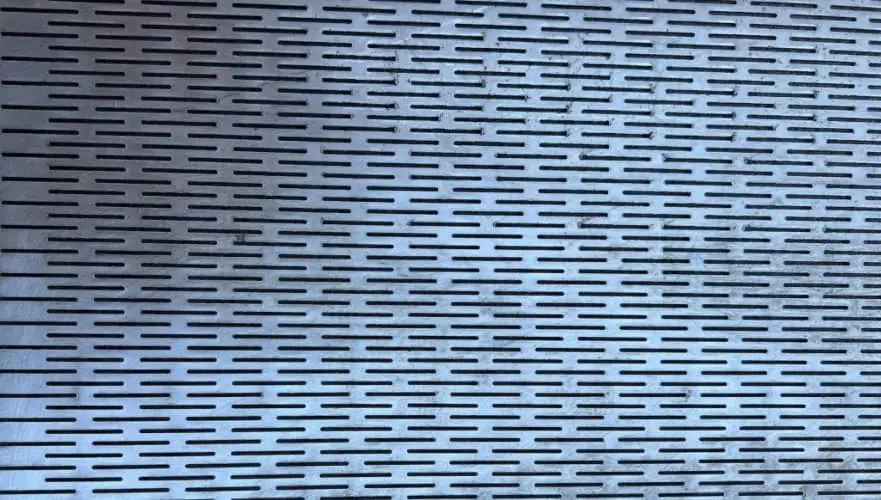

Slotted Hole 1mm x 20mm Pitch

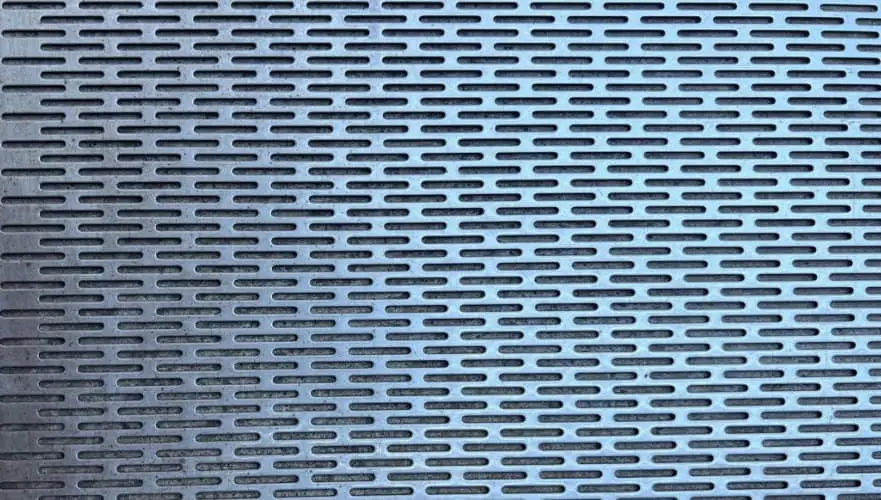

Slotted Hole 2mm x 20mm Pitch

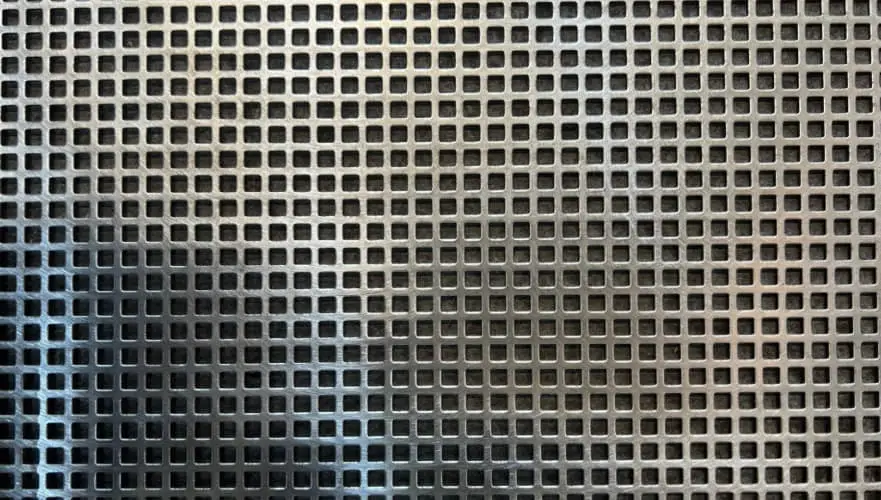

Square Hole 5mm x 7.5mm Pitch

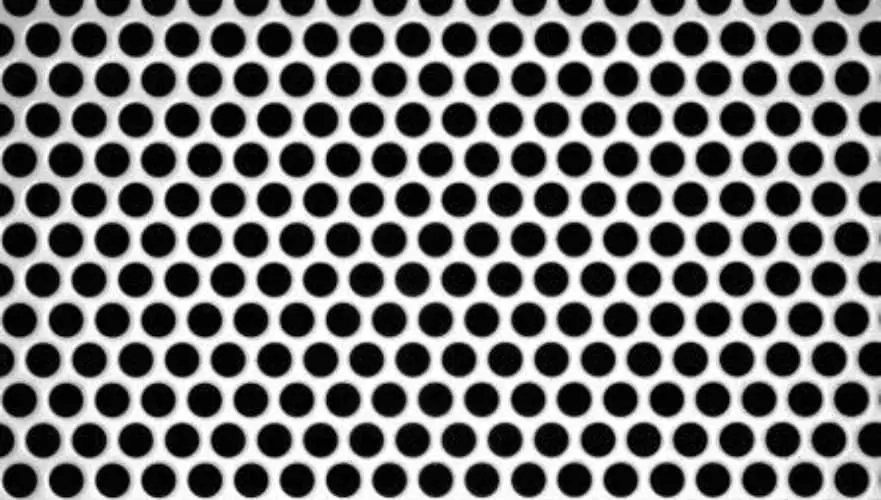

Hole 3mm x 3mm Thick x 4mm Pitch

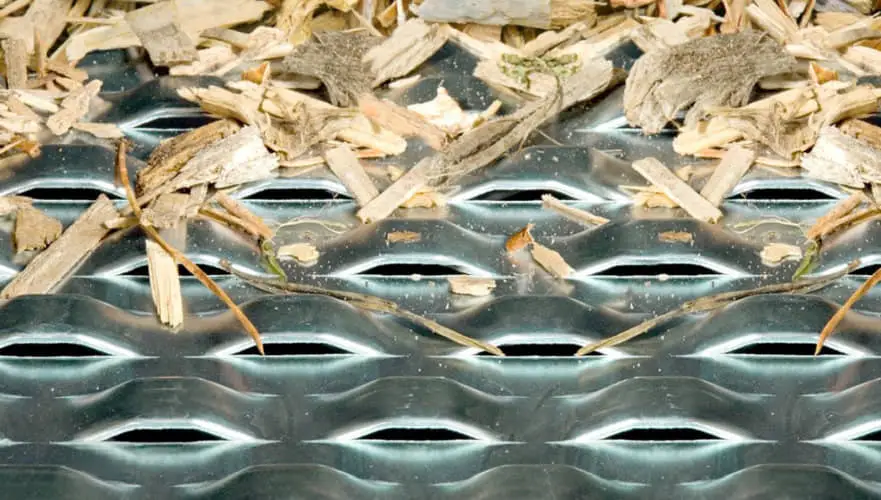

Bridge Slot For Drying Wood Grain & Seed

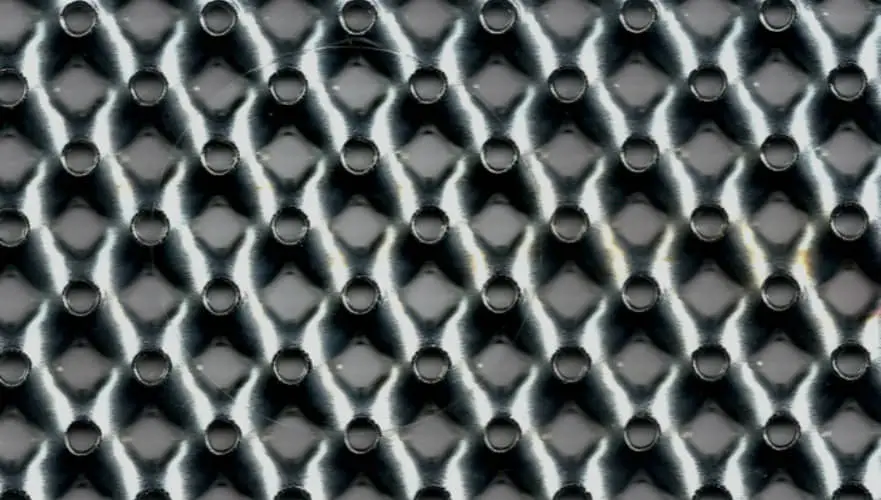

Anti skid 5 x 8

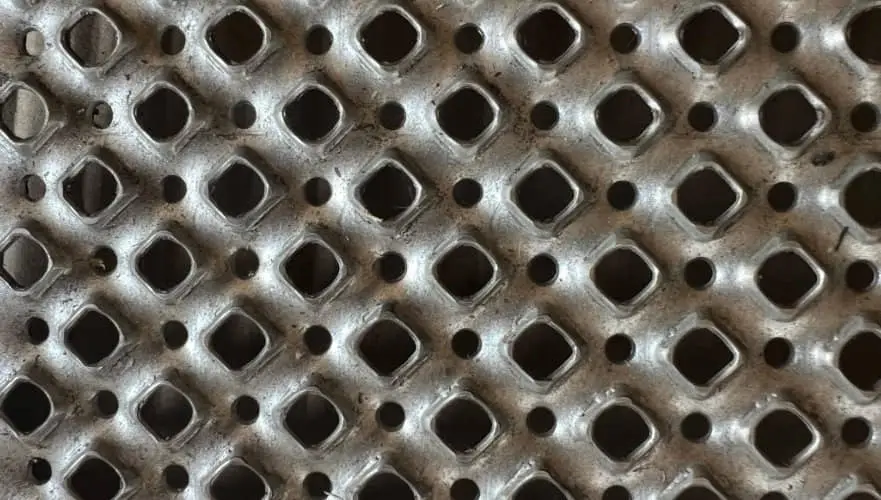

Anti skid 8 x 20mm
Applications
Where Perforated Plates Are Used.
Perforated plates serve a wide range of industries from food and beverage processing and milling to mining, chemical processing, architectural design and acoustic engineering.
Filtration and Separation
- De-watering screen perforated plates in chemical plant wastewater processes
- Perforated plates for filtering and separation in beer and wine processes
- Filtering screen plates for separation in juice, edible oil and food processes
- Filtering and separation in chemical plant and potassium centrifuges
- Filter screens for separation of impurities in plastic extruders
- Perforated screens for filtering and separation of impurities in pulp and paper presses
- Filtration plates for separation in juice, sugar and starch production
Architectural and Decorative
- Perforated metal sheets used as a decorative building facade
- Patterned perforated sheets combined with LED lighting
- Perforated aluminium cladding to enhance facades of older buildings
- Perforated sunscreens for reducing intense sunlight and indoor temperatures
- Themed decorative perforated panels used as an additional security facade
- Perforated steel panels for balustrades and interior architectural finishes
- Sound absorbing perforated wall panels and partitions
- Perforated metal plates for walls and ceilings
Milling and Industrial
- Hammer mill screens for flour, grain, animal feed and plastics
- 0.4mm diameter perforated plates for juice pulp presses
- 0.5mm diameter perforated screens for fine flour milling
- 0.6mm and 0.8mm perforated plates for maize milling
- 1mm diameter perforated plates for food processing equipment
- Screens for increasing product throughput in milling animal feed
- Perforated sieve and drum screens for filtering, sorting and sizing
- Cleaning, sorting and drying screens for agriculture and feed industries
- Separation of solid materials in linear and vibrating screens in mining
- Separation screens for cement, lime and plaster processes
- Perforated screens for malting processes

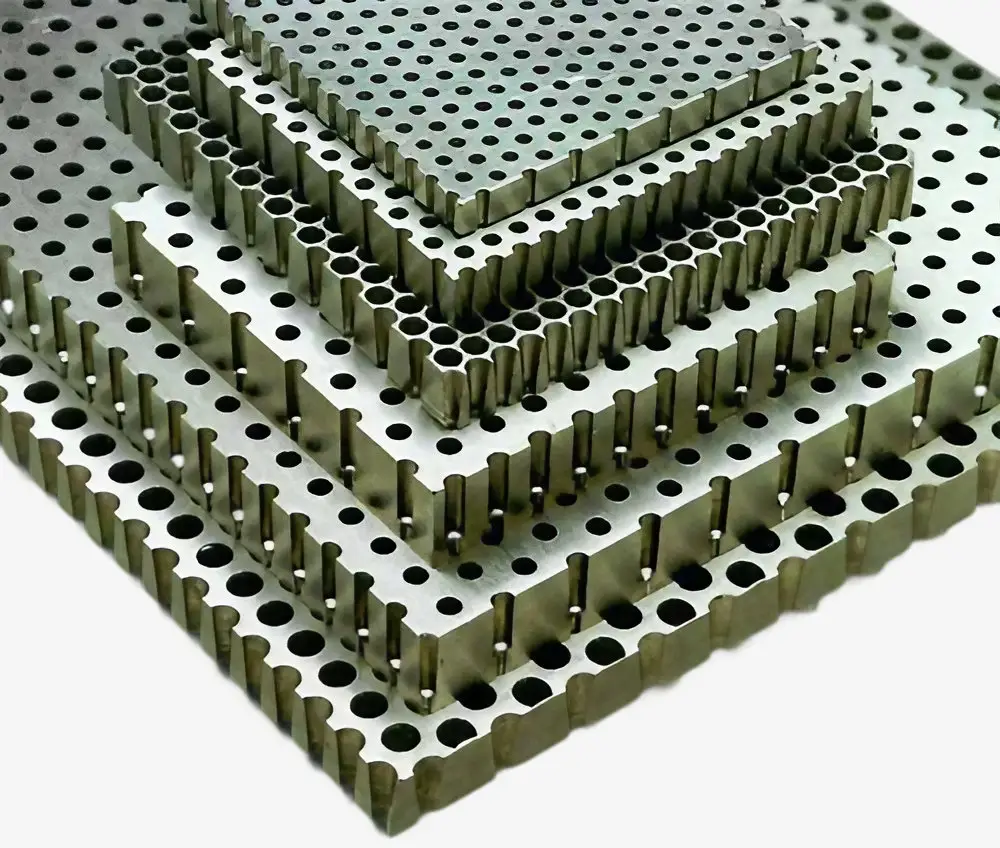

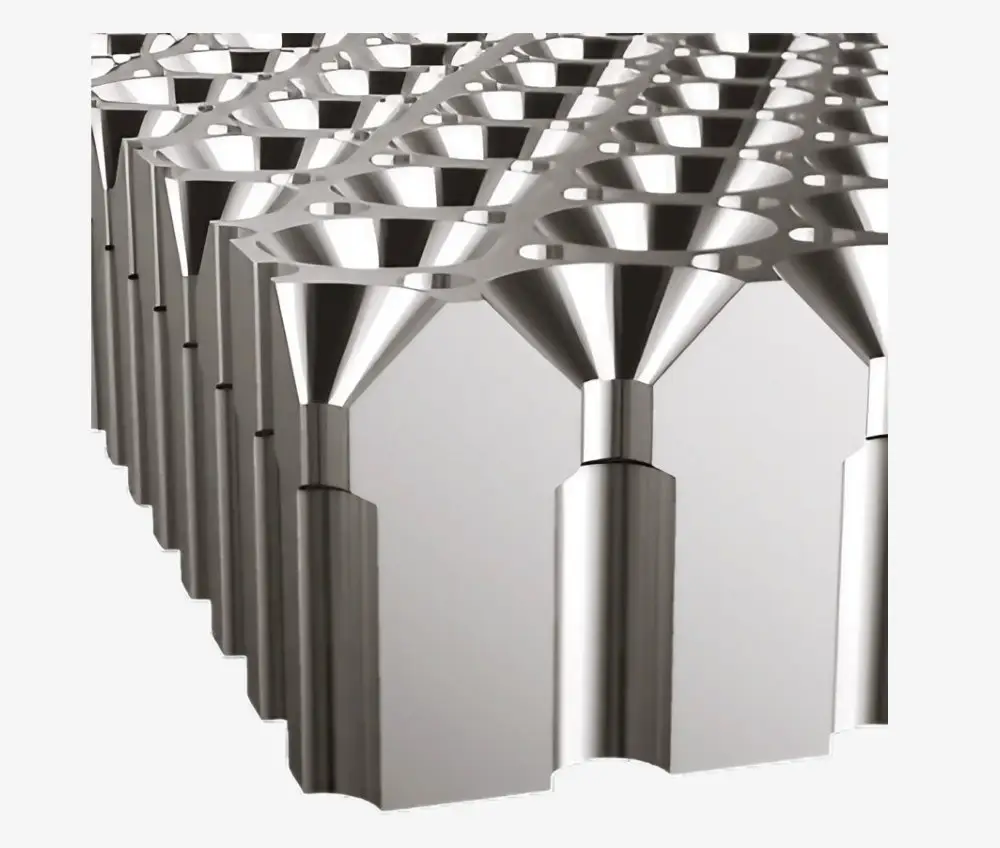

Drilled Plate

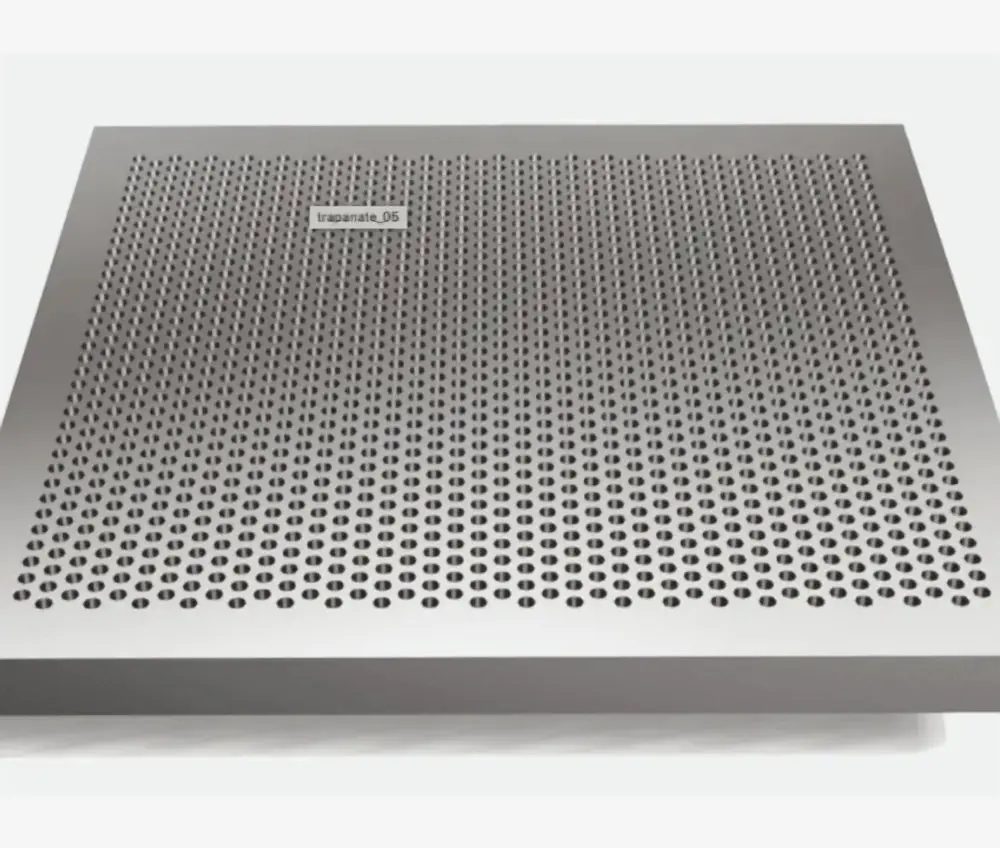

Drilled Plate

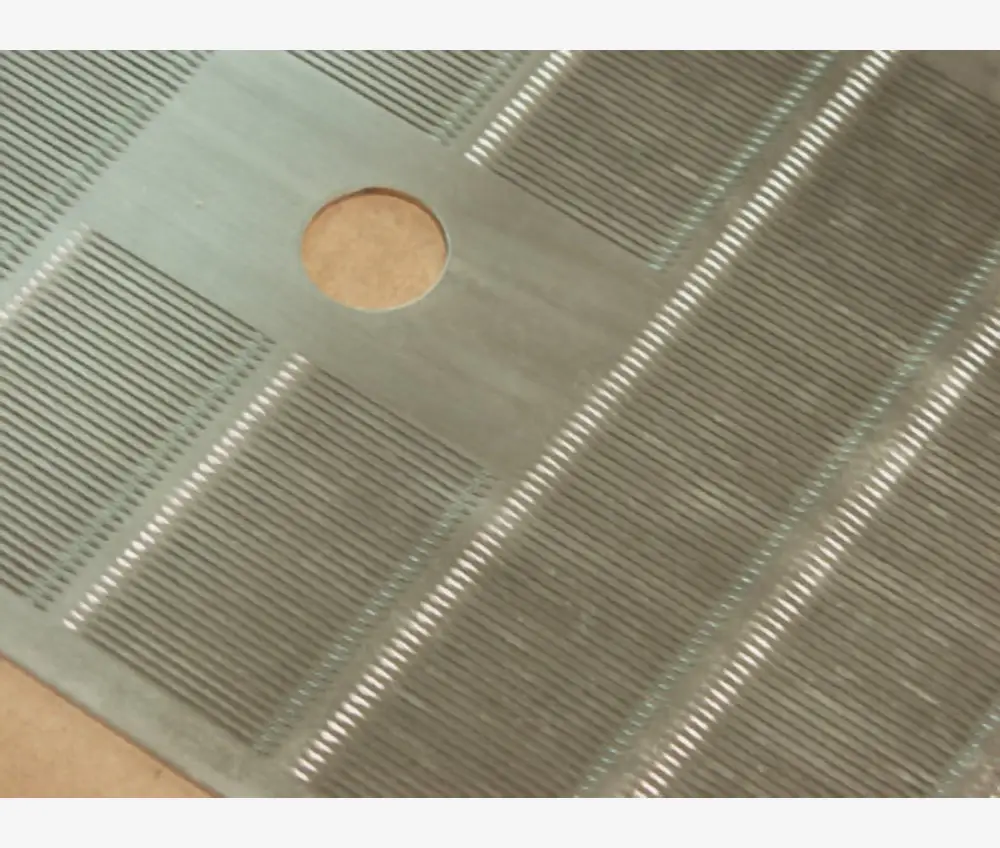

Milled Plate
Drilled Plate
Materials & Specifications
Sizes, Materials & Specifications.
Perforated plates are available from stock in a range of standard sheet sizes and thicknesses. Custom sizes, special hole configurations and materials are available to order with competitive lead times.
Materials In Stock
Stainless Steel 304 and 316, Mild Steel, Aluminium
Materials To Order
Brass, Copper, Hastelloy, Incoloy, Inconel, Monel, Nickel, Titanium
Sheet Sizes
2000x1000mm, 2500x1225mm, 1500x3000mm up to 2000x6000mm
Thicknesses
0.3mm up to 20mm
Additional Notes
For stainless steel perforated plates where the plate thickness needs to be greater than the hole diameter, drilled plates are supplied. In some smaller hole sizes, plates slightly thicker than the hole size can also be supplied. Custom hole shapes, countersunk and conical profiles available on request.
Reference Data
Perforated Plates Specification Tables.
The tables below provide standard specification data for perforated plates. Replace each placeholder with the corresponding TablePress or ElementsKit table widget. Two tables are included: one for standard perforated plate data and one for drilled plate data.
| Hole Size | Pitch | Thickness |
|---|---|---|
| 0.3mm | 1.25mm | 0.3mm |
| 0.4mm | 1.5mm | 0.4mm |
| 0.5mm | 1.09mm, 1.25mm $ 1.5mm | 0.5mm |
| 0.6mm | 1.4mm & 1.5mm | 0.5mm |
| 0.75mm | 1.5mm | 0.6mm, 0.75mm & 1mm |
| 0.8mm | 1.5mm & 2mm | 0.75mm, 0.8mm & 1mm |
| 1mm | 2mm | 0.5mm, 0.8mm, 1mm & 1.5mm |
| 1.05mm | 2mm | 0.7mm |
| 1.1mm | 2mm | 0.8mm & 1mm |
| 1.25mm | 2.4mm & 2.5mm | 0.75mm 1mm, 1.25mm & 1.5mm |
| 1.5mm | 2.5mm, 2.6mm & 3mm | 0.4mm, 0.5mm, 0.75mm, 1mm & 1.5mm |
| 1.75mm | 3mm | 1mm & 1.5mm |
| 2mm | 3mm, 3.5mm & 4mm | 0.5mm, 0.75mm, 1mm, 1.5mm, 2mm & 2.5mm |
| 2.75mm | 4.5mm | 2mm |
| 3mm | 4mm, 4.5mm, 5mm & 6mm | 0.5mm, 0.7mm, 0.8mm, 1mm, 1.5mm, 2mm, 3mm & 4mm |
| 3.5mm | 5mm & 5.5mm | 1mm, 2mm & 3mm |
| 4mm | 5mm,5.25mm, 5.6mm, 7mm & 8mm | 1mm, 2mm & 3mm |
| 5mm | 6.5mm, 7mm, 7.5mm, 8mm, 9mmm & 10mm | 0.5mm, 0.7mm, 0.75mm, 1mm, 1.5mm, 2mm, 3mm & 5mm |
| 6mm | 8mm & 9mm | 1mm, 1.5mm, 2mm, 3mm, 5mm & 6mm |
| 7mm | 10mm | 1mm & 3mm |
| 8mm | 10mm, 11mm, 12mm & 15mm | 1mm, 2mm, 3mm, 6mm & 8mm |
| 9mm | 12mm | 2mm |
| 10mm | 12.7mm, 15mm & 16mm | 1mm, 2mm, 3mm, 4mm, 8mm, 10mm |
| 12mm | 16mm | 1mm, 1.5mm, 2mm, 3mm & 6mm |
| 15mm | 19mm, 20mm, 21mm & 22mm | 1mm, 1.5mm, 2mm, 3mm,5mm & 10mm |
| 20mm | 27mm & 28mm | 1mm, 1.5mm, 2mm, 3mm & 5mm |
Additional Information
Perforated plates are produced to suit individual requirements and special perforated configurations, often dictating the need for tailormade dies. From hammer mill screens to distillation trays and architectural facades, Kentech sources and supplies precision perforated plates to meet exact process and design specifications. Contact us for custom sizing, special materials, tolerances or delivery requirements.
